Aerial Self Supported ASU Fiber Optic Cable Plenum/Riser/LSZH/OFNP Jacket

  • 1
  • 2
  • 3

Brand Name : CFO

Model Number : ASU Cable

Certification : IS9001:2025

Place of Origin : China

MOQ : 1km

Packaging Details : 1km/drum

Cable Attenuation : ≤0.35dB/km

Cable Bandwidth : ≥500MHz.km

Cable Certification : UL/CE/RoHS/ISO

Cable Jacket : Plenum/Riser/LSZH/OFNP

Cable Length : 10m-1000m

Cable Temperature : ≤-20℃~+70℃

Cable Type : Optical Fiber Cable

Fiber Count : 2-24 cores

Fiber Type : G652D G657A1 G657A2

NESC : light mdeium Heavy

Contact Now

Multicom – MINI ADSS-ASU – Aerial Self-Supported ASU Fiber Optic Cable





1. Description:

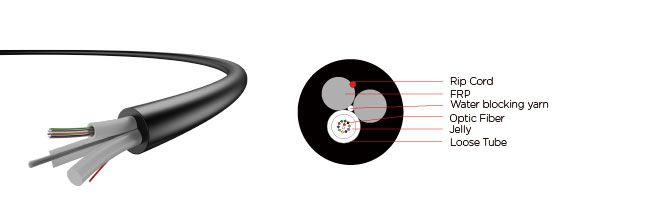

Carefiber's Mini Adss ASU Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watering. Two Parallel fiber-reinforced plastic(FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
Carefiber can customize the number of cores of ASU Fiber Optic cables according to customer needs. The number of cores of mini ADSS Cable is 2,4,6,12 up to 24 cores.



2. Specifications:





Type





Diameter

(mm)

Weight

(kg/km)

Tensile strength

Long/short term(N)

 Crush Long/short term(N/100mm) Bending Radius Static/Dynamic
ASU-80 6.8(2.0 tube) 45 300/600 300/600 10D/20D
ASU-120 7.8(2.5 tube) 60 300/600 300/600 10D/20D



Aerial Self Supported ASU Fiber Optic Cable Plenum/Riser/LSZH/OFNP Jacket

3. Features:



1. Lighting Resistance

2. Non-metallic structure

3. Duct installation and aerial installation together with tension strand wire

4. Suitable for FTTH application as drop cable



4. Application:



1. Aerial

2. Outdoor



5. Standards:



1. IEC 60793, IEC60794

2. IEEE1222

3. TIA/EIA

4. ITU-T


Product Tags:

Aerial Self Supported Fiber Optic Cable



ASU Fiber Optic Cable
